Ultra 150 – 5 Gallon Bottling - Steelhead Inc. - Custom Bottling Solution

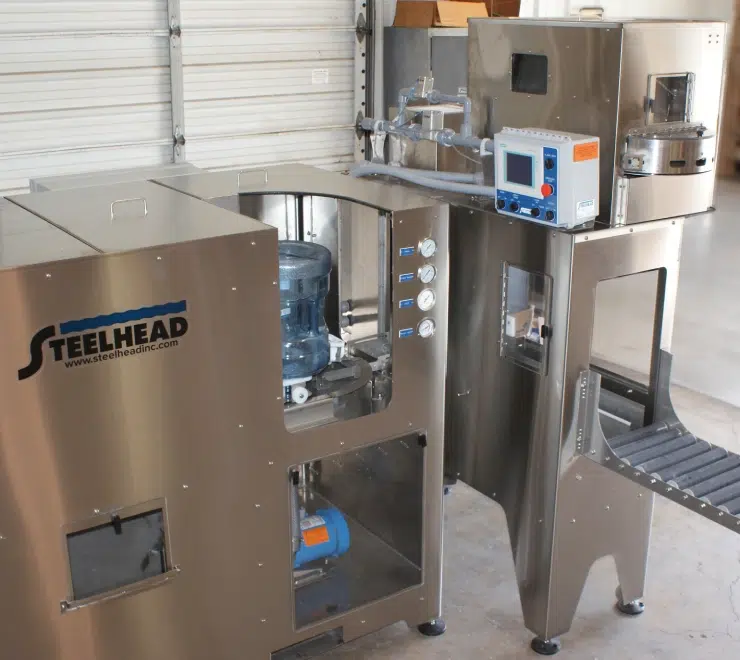

Ultra 150 – 5 Gallon Bottling

Steelhead Ultra Series Water Bottling Machines

Automated 5-Gallon bottle washer, sterilizer, filler and capper machine for single operator.

The Steelhead Ultra series 5 gallon water bottling machine is designed with the small to medium size bottler in mind. The Ultra series boasts a compact and convenient design making it the most popular and dependable 5 gallon bottling system available. Everything from ease of use to footprint has been taken into consideration. With more than 500 systems operating around the world, the Ultra has a water bottling equipment track record that you can count on.

  • Complete Gas or Electric Heat System and Controls
  • Corona Discharge Ozone Generator with Air Treatment Unit
  • Internal and External CPVC Piping and Connectors
  • FDA Approved Pressurized Fill Room with Hospital Grade Inlet Filter
  • Stainless Steel Cap Sorter and Delivery System
  • Automatic S.S. Overhead Cap Hopper

Ultra 150 Series Standard Features

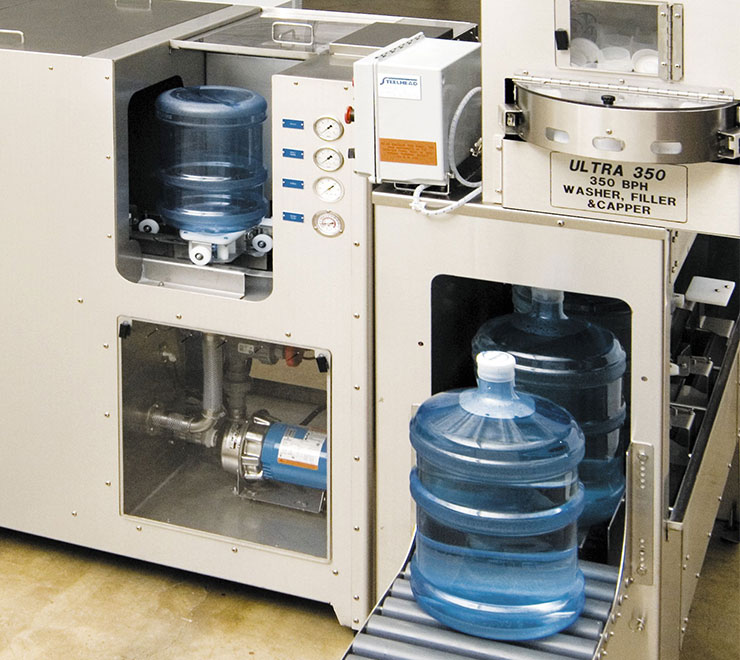

Steelhead’s Ultra series is a self contained, all-in-one, 5 gallon water bottling equipment system for the HOD bottled water industry. Load an empty 5 gallon container in one side and the system delivers a fully sanitized, filled and capped bottle for immediate delivery!

  • 150 bph with a single operator
  • Made of Heavy Duty 12 GA. Stainless Steel
  • DC Speed Controlled Gear Drive Motor for Precise Bottle Movement in Washer
  • Non Contact 2 Stage, Automatic Filling System
  • Quick Latch Removable Large Tank and Window Access
  • PLC, Motor Starters, and Controls in a NEMA 4 Enclosure
  • Low Profile Allows For Good Observation Of Process
  • Exclusive Bottle Neck Sprays Integrated In Washer
  • Recirculated Wash Fluids
  • ALL Stainless Steel Spray Nozzles in Washer
  • Man-Machine Interface Control System
  • Automatic Ozone Sterilization System for Bottle Sterilization
