INOX MO3 24000 GPD 8″ RO System
inox-m03-24000-gpd-8inch-ro-system

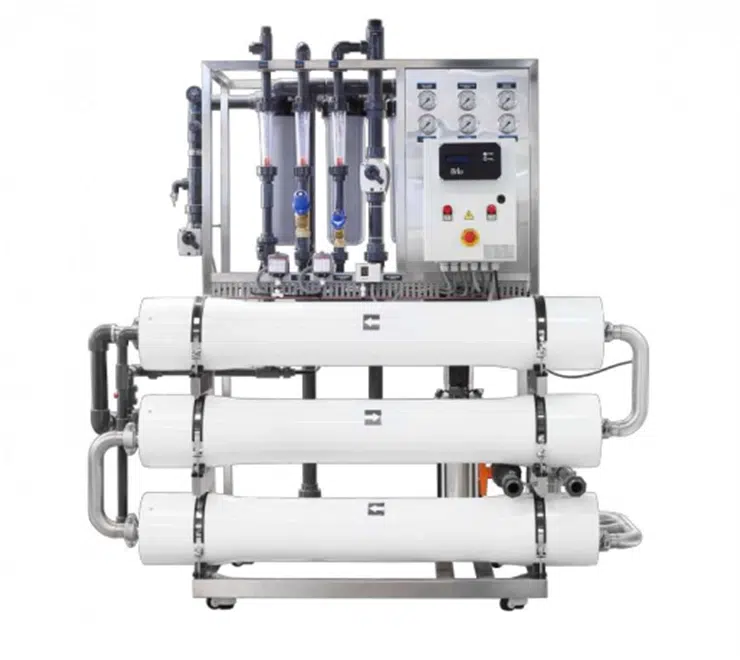

Steelhead INOX MO3 24000 GPD 8" RO System

Application:

Process water, rinse water, steam boilers, heating and cooling circuits, agriculture, desalination, food and beverage, utility water treatment.

Equipment:
  • Grundfos® CRN 10-8 high pressure pump: 1 pcs
  • 8040 membrane housing: 3 pcs
  • BB20: 3 pcs
  • Motorized valves: 2 pcs ( feed water in, flush out)
  • Balancing valves: 2 pcs (concentrate reject, concentrate recycle)
  • Electrical panel with controller: 1 set
  • AISI 316 Stainless steel high pressure line: 1 set
  • AISI 304 Stainless steel frame: 1 set
  • Frame mounted casters: 1 set
Connection Port Sizes:
  • Feed water: G 11⁄2′′
  • Permeate: G 1′′
  • Concentrate: G 11⁄2′′
  • CIP inlet: G 11⁄2′′
  • CIP return: G 11⁄2′′
  • CIP permeate: G 1⁄2′′
  • Antiscalant dosing port: G 1⁄2′′

INOX MO3 24000 GPD 8" RO System Features

Steelhead’s INOX MO3 24000 GPD 8″ RO System is a one stop shop for your industrial RO needs.

  • Grundfos® CM 1-7 (AISI 304 impeller and pump housing)
  • 75% Recovery rate with concentrate recycle
  • Compact design
  • Premium components
  • TDS and temperature monitor
  • Adjustable pressure switches
  • Pressure line throttle valve regulator
  • Dry-run and high pressure protection
  • Antiscalant dosing connection port
