4-Membrane RO System - Steelhead Inc. - Custom Bottling Solution
4-Membrane RO System
4-membrane-ro-system

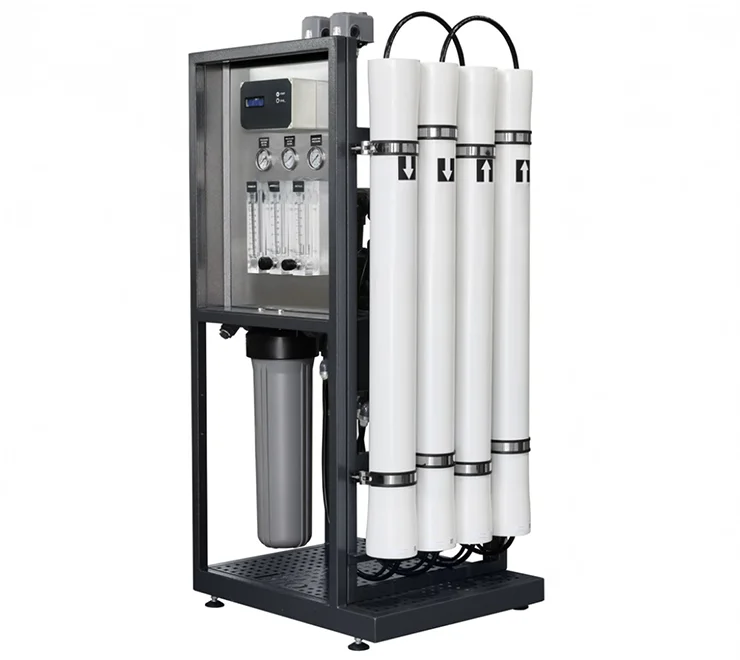

Steelhead Membrane RO System

Application:

Whole house RO system, café & restaurant, bakery, hotel, water store, ice production, car wash & laundromat, brewery & beverage production, greenhouse, farm, factory & warehouse, steam boiler, heating & cooling circuit, and other commercial applications

Specifications:
  • Flow Rate*: 4.4 – 5.4 GPM
  • Power: 230 V, 60 Hz, 11 Amps
  • Power Consumption: 1.65 kW
  • Weight (System / In Crate): 220.5 lb / 352.8 lb
  • System Dimensions: 27.6″ W x 23″ D x 59″ H
  • Crate Dimensions: 33″ W x 28.2″ D x 75.6″ H
Connection Sizes:
  • Inlet (Feed Water): 1″ F
  • Permeate (Purified Water): 1″ F
  • Drain (Concentrate): 1″ F
  • Antiscalant Dosing Port: 1 ⁄ 2″ F
  • Raw Water Blending Port 3 ⁄ 8″ QC / 1 ⁄ 2″ F
  • Permeate Flushing Port: 1″ M

4-Membrane RO System Features

Steelhead’s 4-Membrane RO System is a one stop shop for your whole house and industrial RO needs.

  • Grundfos® CM 1-7 (AISI 304 impeller and pump housing)
  • 75% Recovery rate with concentrate recycle
  • Compact design
  • Premium components
  • TDS and temperature monitor
  • Adjustable pressure switches
  • Pressure line throttle valve regulator
  • Dry-run and high pressure protection
  • Antiscalant dosing connection port
